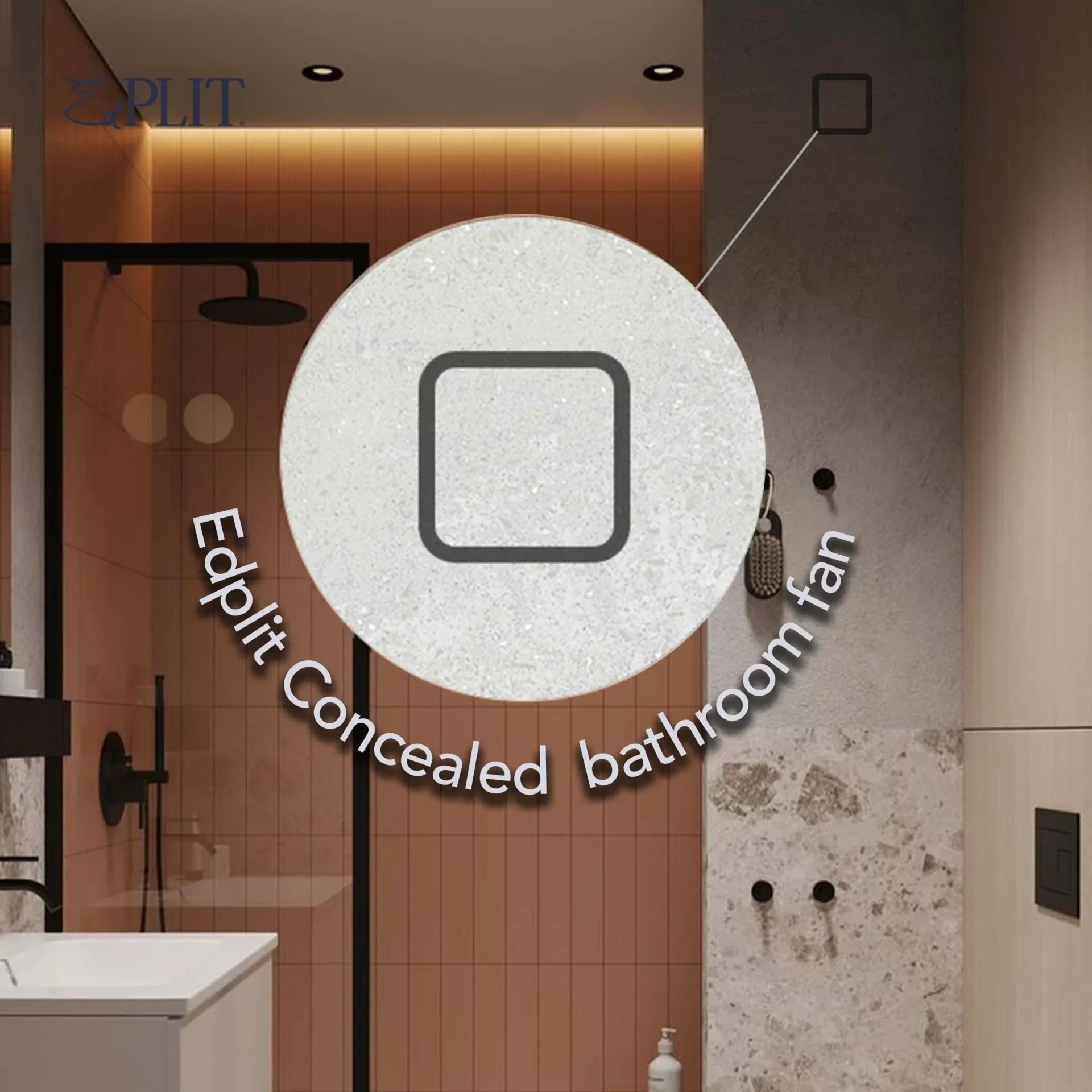

Edplit Concealed Fan Mounting System
This product is a concealed mounting system that allows you to integrate a standard axial or duct fan discreetly into your bathroom or toilet space.
Please Note:
This product is a mounting system only.
The fan is not included and should be selected separately based on your airflow and noise requirements.
Concealed Fan Mounting System
Specifications

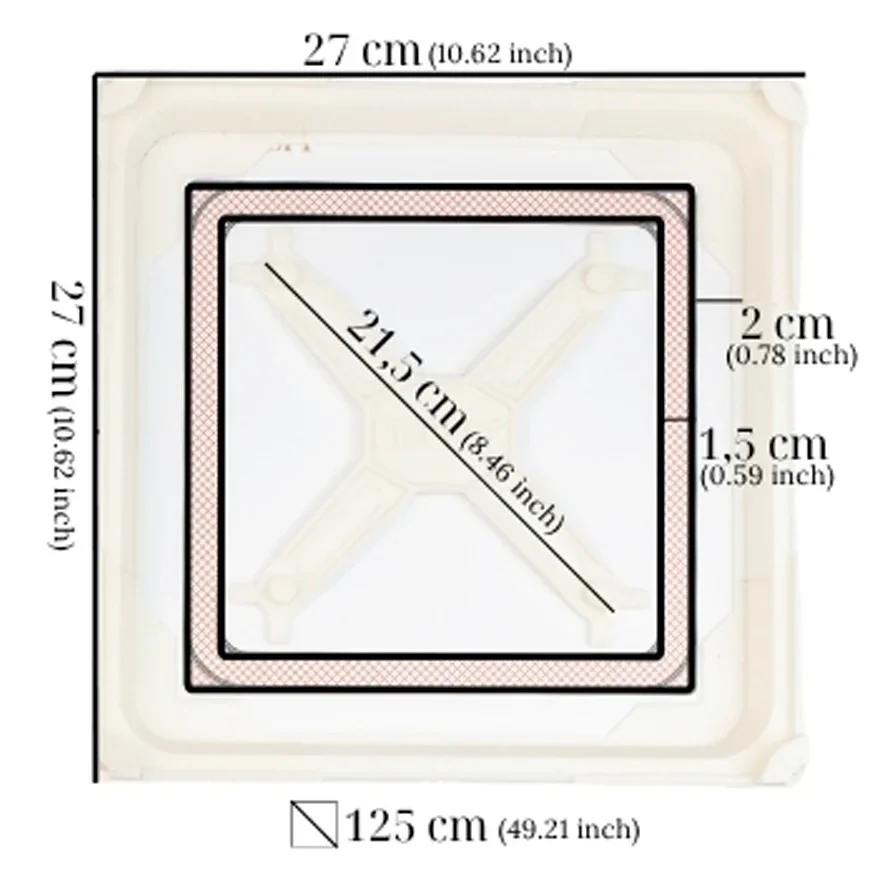

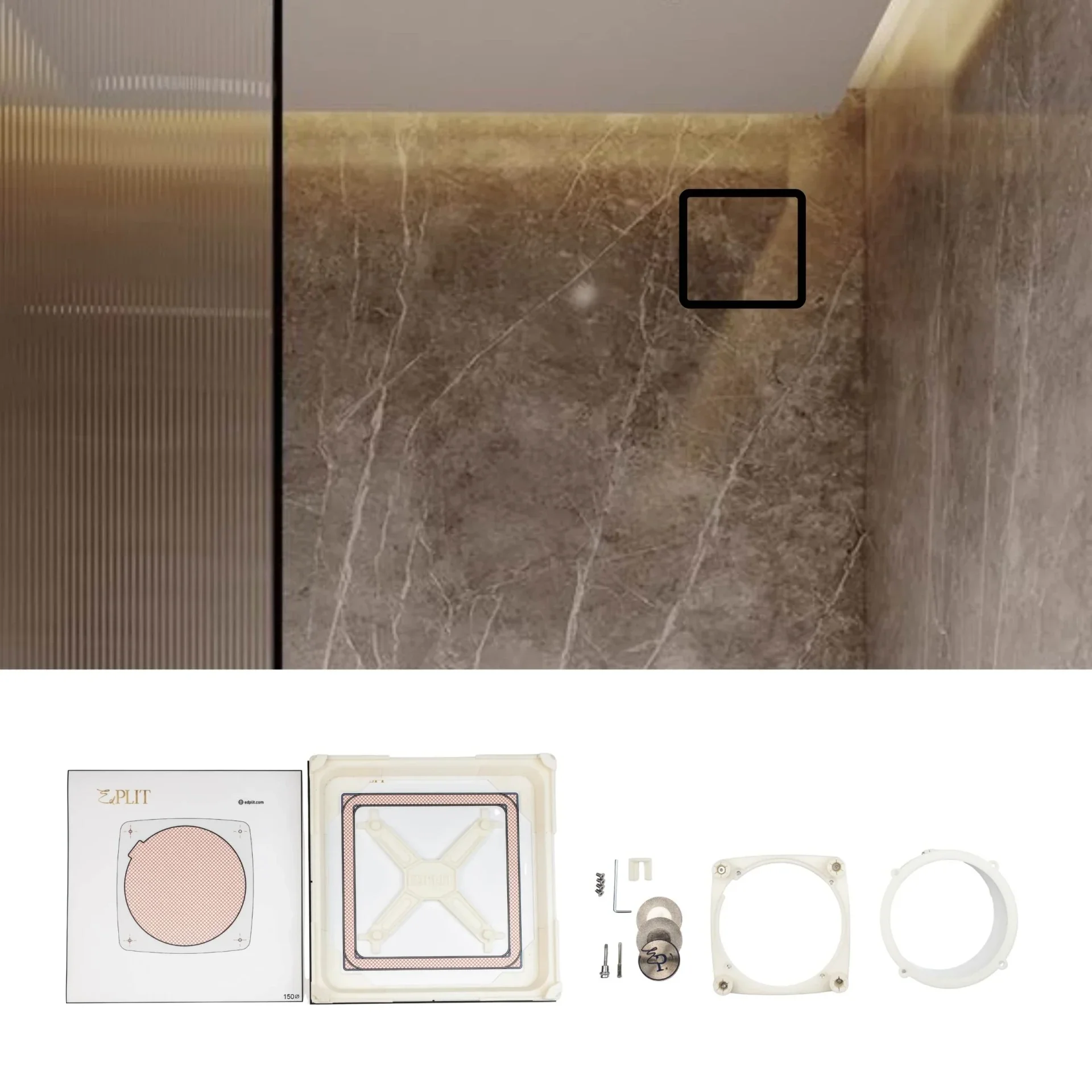

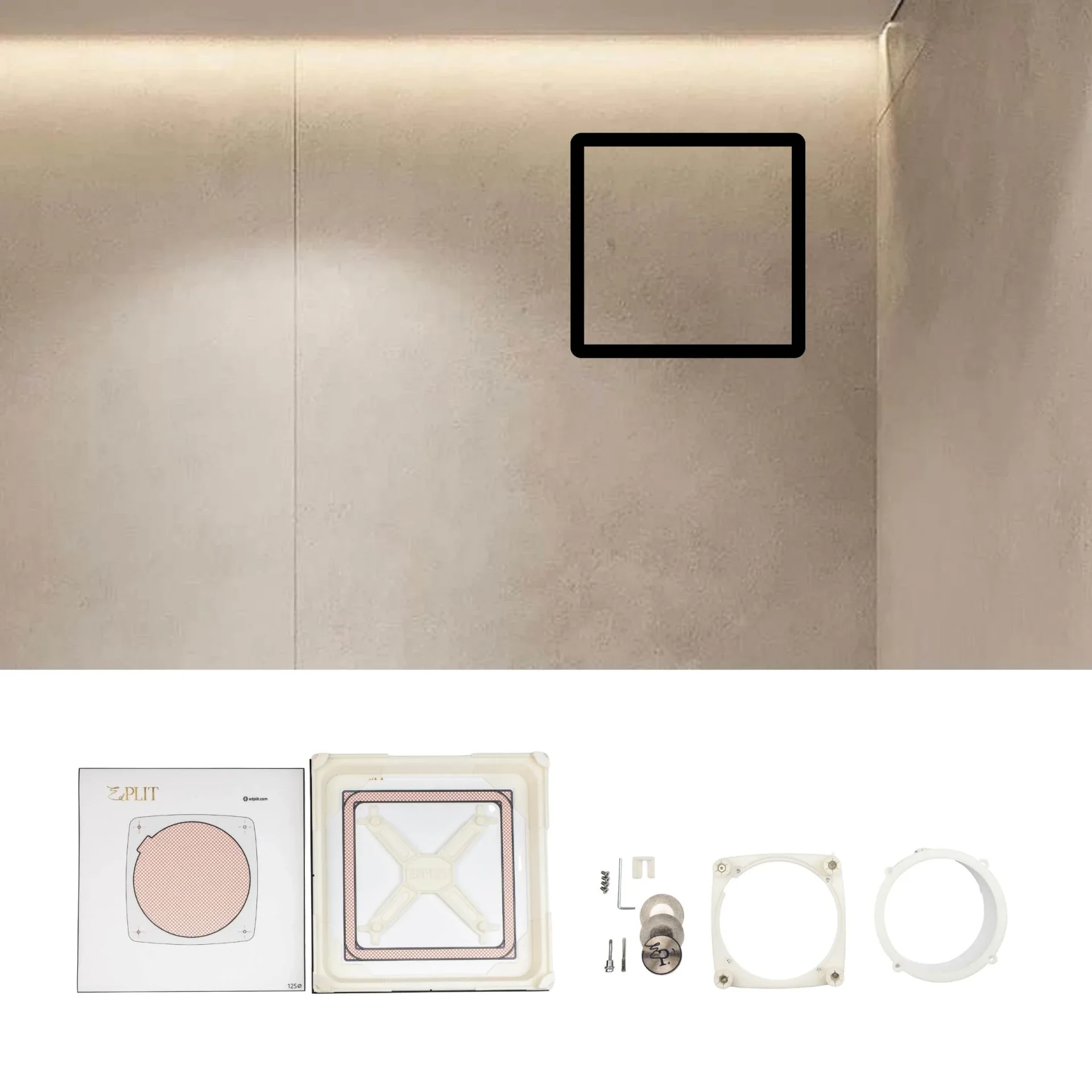

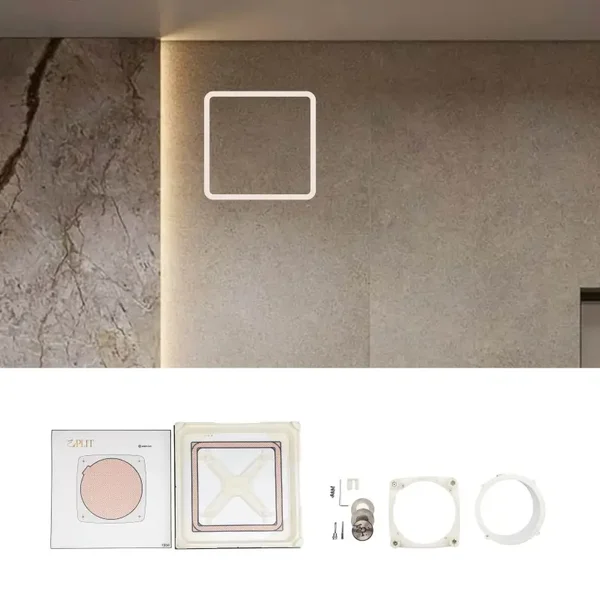

A modular installation system that enables concealed mounting of fans with diameters of 100 mm, 125 mm, or 150 mm. It allows full tiling, leaving only a subtle airflow gap, while ensuring access for maintenance if needed.

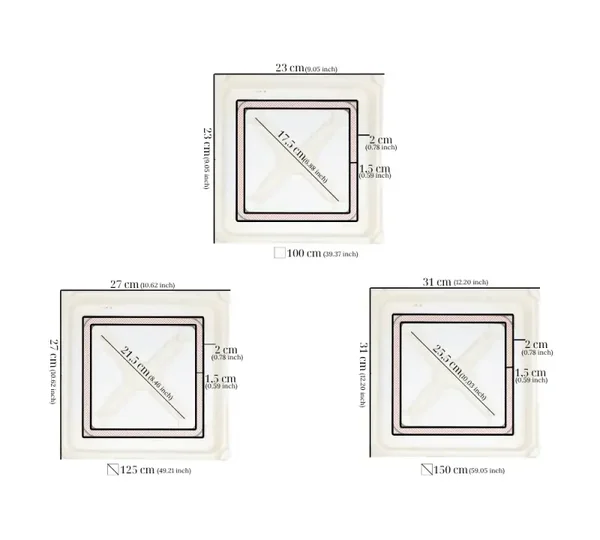

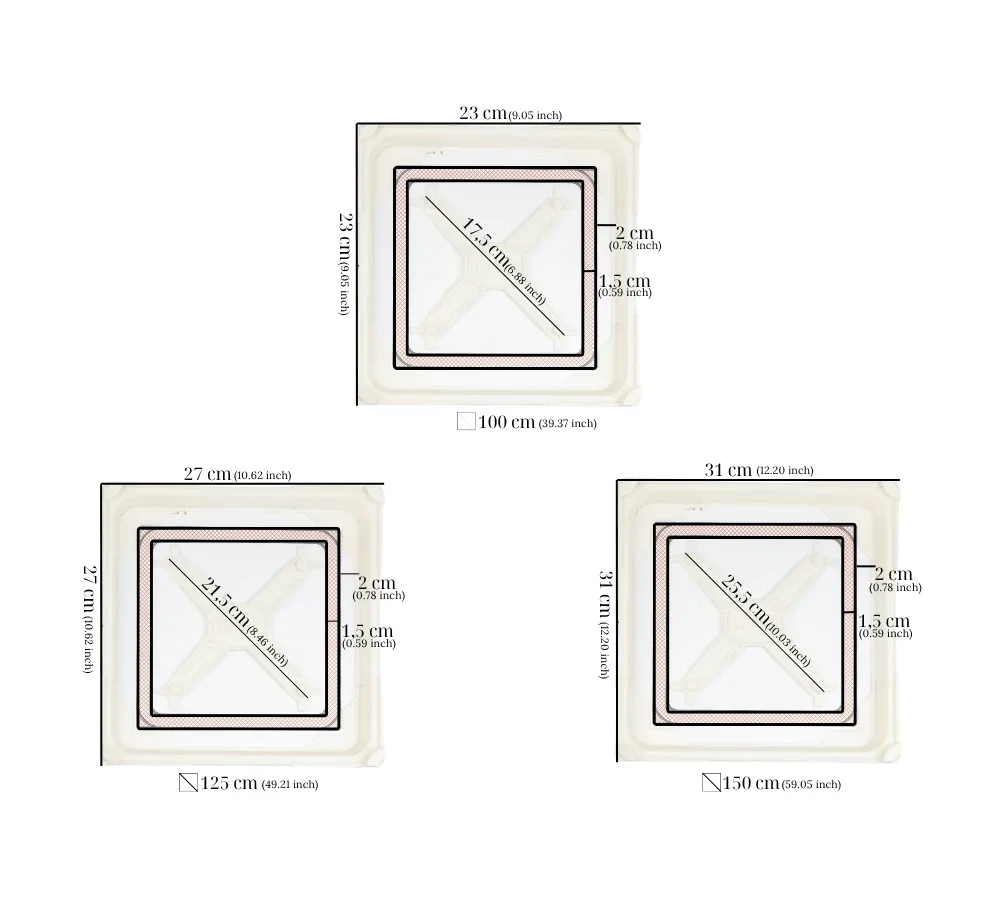

Available Sizes:

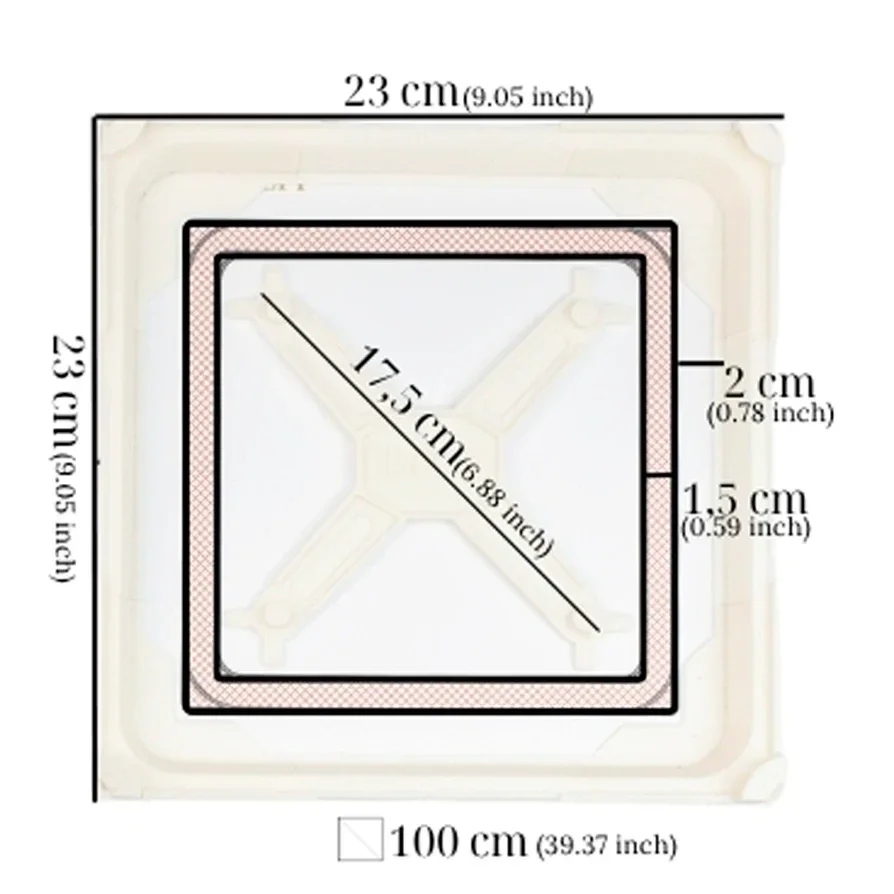

100 mm — ideal for guest toilets or compact powder rooms
125 mm — suitable for medium bathrooms or rooms up to 8 m²

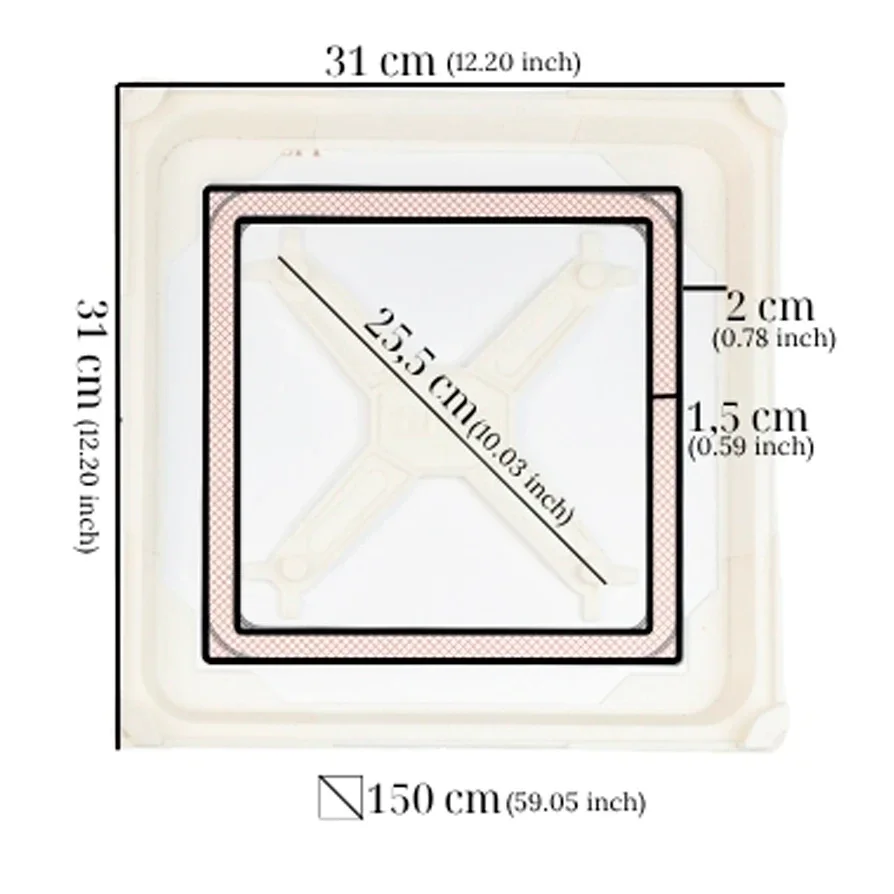

150 mm — perfect for larger bathrooms or spaces up to 12 m²

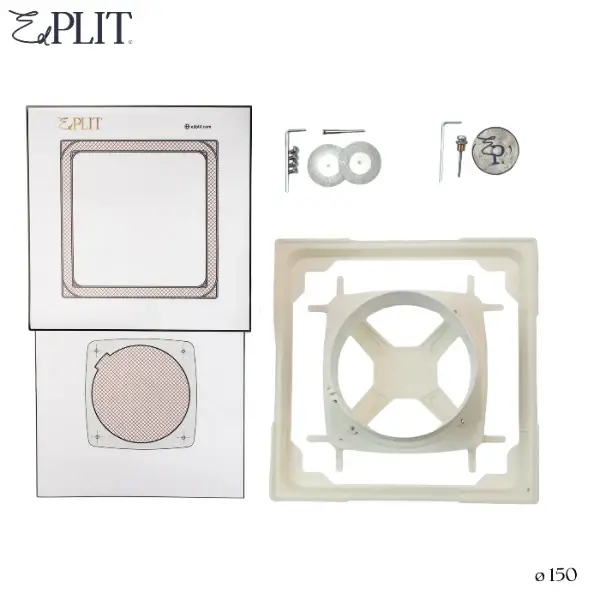

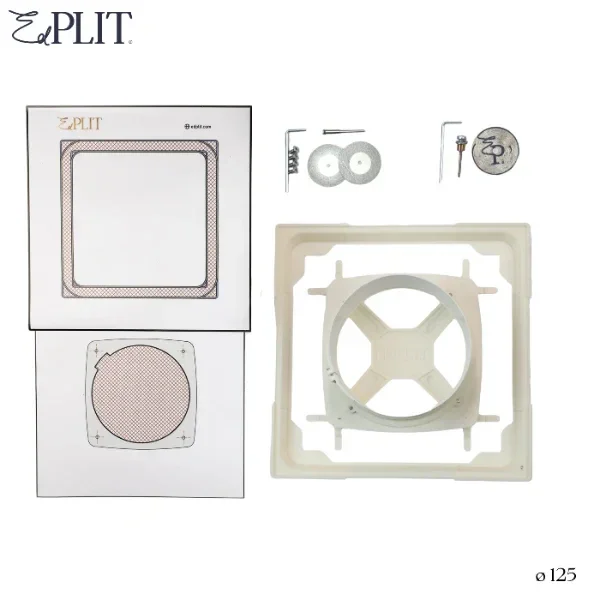

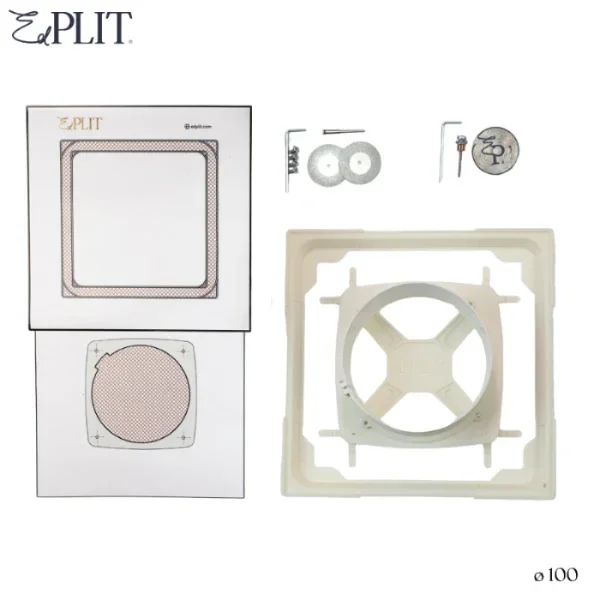

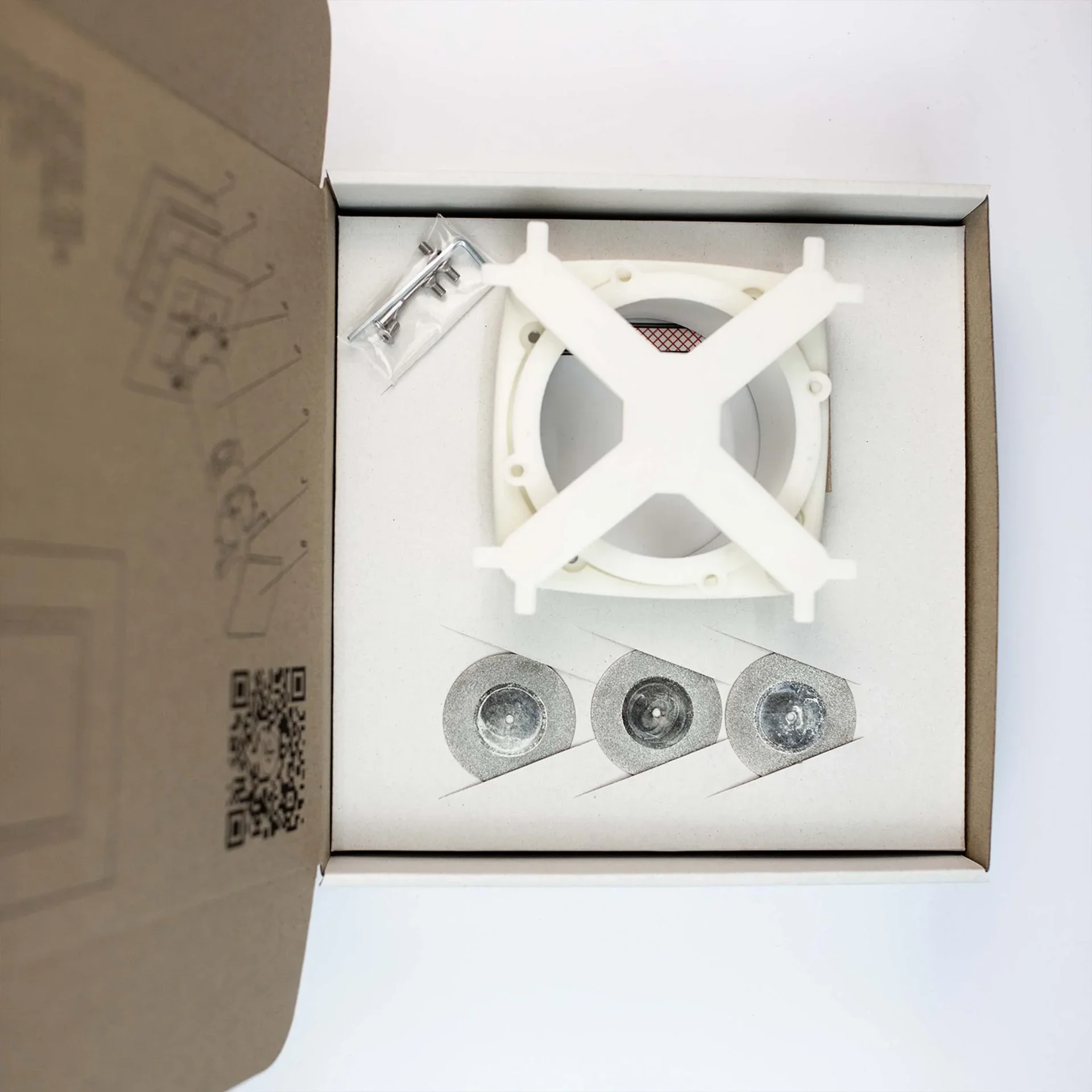

Included in the Full Set (With Consumables):
Concealed mounting elements
Installation hardware
1 diamond cutting disc and 2 diamond sanding discs.
Tools & Tips (EdPlit Fan System
To create the tile insert, use the included adhesive template to mark the cut-out precisely.
Recommended tools:
Tile engraver: Standard rotary engraver, milling cutter, or the recommended Edplit Tile Engraver ensures precise and clean cuts suitable for ceramics, porcelain, and stone.
Waterjet cutting: Provides highly accurate and smooth cutting. Ideal for projects with premium tiles or natural stone.
Adhesive template: The kit includes adhesive templates
Glue: PU glue
Air Silent Fan
AirSilent fans deliver optimal ventilation with ultra-low noise and energy consumption — ideal for bathrooms, powder rooms, kitchens, and laundry areas.
Equipped with a backdraft damper to prevent reverse airflow when the fan is off.
Note: This listing includes the fan unit only. EdPLIT flush-mount system sold separately.
